1.系列代碼 Series Symbol |
MP |
|
2.規格 Specification |
6,10,15,20, 30,40,55, 70,100,120 |
|
3.類型 Type |
R: 標準型 Standard RZ: 高揚程型 High head RX: 大流量型 High capacity |
|
4.配管形式 Type of Connection |
無標志: 軟管連接 |
|
5.泵體材質 Casing Material |
G: GFRPP C: CFRPP P: PVDF E: CFRETFE |
|
6.泵軸材質 Shaft Material |
A: 高鋁陶瓷 CERAMIC S: 碳化硅 SSIC |
|
7.軸承材質 Bearing Material |
C: 碳 CARBON R: 填充四氟 PTFE S: 碳化硅 SSIC |
|
8.O型圈材質 O-Ring Material |
E: 三元乙丙 EPDM V: 氟橡膠 VITON |
|
9.頻率 Frequency |
無標志：普通50/60HZ NO code: Nomal -5: 50HZ |
產品參數：

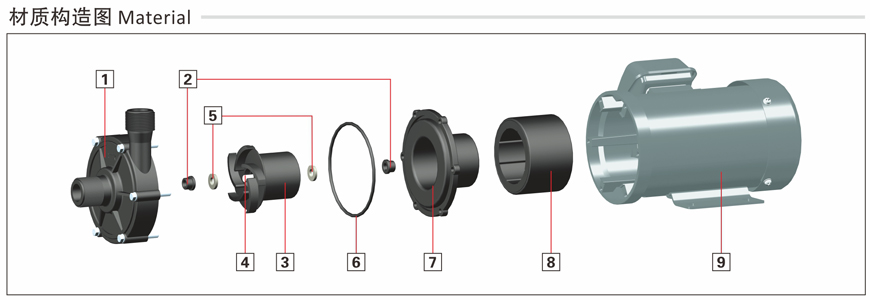

| 編號NO. | 名稱 Description | ACE | ACV | ARE | ARV | SSE | SSV |
| 1 | 前蓋 Pump casing | GFRPP/CFRPP/PVDF/CFRETFE | |||||
| 2 | 軸承 Bearing |
CARBON |
CARBON | PTFE | |||
| 3 | 葉輪 Impeller unit | GFRPP/CFRPP/PVDF/CFRETFE | |||||
| 4 | 泵軸 Shaft | CERAMIC | SSIC | ||||
| 5 | 止推環 Thrust ring | CERAMIC | SSIC | ||||
| 6 | O形圈 O-Ring |
EPDM |
VITON | EPDM | VITON | EPDM | VITON |
| 7 | 后蓋 Rear casing | GFRPP/CFRPP/PVDF/CFRETFE | |||||
| 8 | 驅動磁鐵 Drive magnet | Isotropic ferrite | |||||
| 9 | 馬達 Motor | ||||||
|

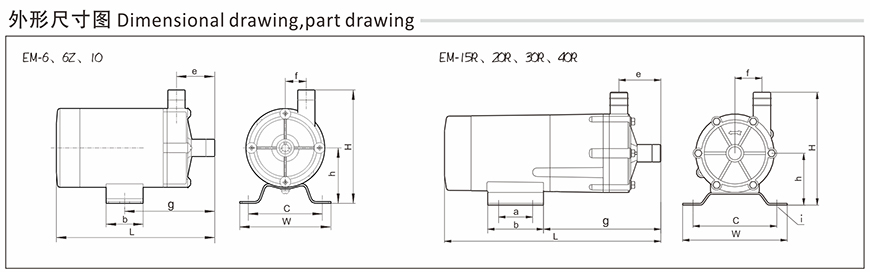

型號 Model |
W | H | L | a | b | c | h | e | f | g | i |
| MP-6 | 74 | 83 | 129 | - | 30 | 60 | 36 | 31 | 17 | 74 | 2-Φ6 |
| MP-6Z | 74 | 83 | 129 | - | 30 | 60 | 36 | 31 | 17 | 74 | 2-Φ6 |
| MP-10 | 74 | 83 | 129 | - | 30 | 60 | 36 | 31 | 17 | 74 | 2-Φ6 |
| MP-15R | 83 | 100 | 194 | 49 | 64 | 68 | 45 | 39 | 23 | 92 | 4-6×10 |
| MP-20R | 85 | 115 | 211 | 30 | 50 | 68 | 56 | 38.5 | 28.5 | 106 | 4-5.5×10 |
| MP-30R | 120 | 130 | 248 | 40 | 64 | 100 | 60 | 48 | 31 | 135 | 4-Φ9 |
| MP-40R | 120 | 130 | 241 | 40 | 64 | 100 | 60 | 48 | 31 | 135 | 4-Φ9 |
|

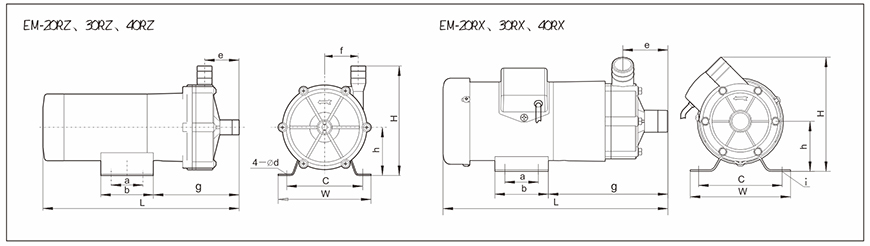

型號 Model |
W | H | L | a | b | c | h | e | f | g | i |
| MP-20RZ | 85 | 126 | 212 | 30 | 50 | 68 | 56 | 40 | 40 | 109 | 4-5.5×10 |
| MP-30RZ | 120 | 130 | 234 | 40 | 64 | 100 | 60 | 40 | 40 | 120 | 4-Φ9 |
| MP-40RZ | 120 | 150 | 241 | 40 | 64 | 100 | 60 | 40 | 45 | 128 | 4-Φ9 |
| MP-20RX | 85 | 130 | 220 | 30 | 50 | 68 | 56 | 46.5 | - | 118 | 4-5.5×10 |
| MP-30RX | 120 | 137 | 257 | 40 | 64 | 100 | 60 | 54 | - | 137 | 4-Φ9 |
| MP-40RX | 120 | 140 | 269 | 45 | 75 | 100 | 64 | 54 | - | 143 | 4-9×14 |
|

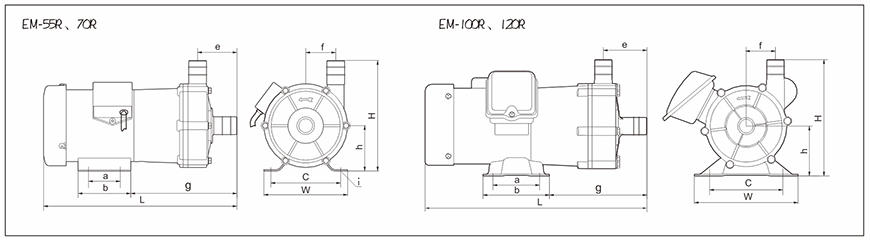

型號 Model |
W | H | L | a | b | c | h | e | f | g | i |
| MP-55R | 120 | 158 | 277 | 45 | 75 | 100 | 65 | 56.5 | 43 | 152 | 4-9×14 |
| MP-55R-5 | 120 | 158 | 277 | 45 | 75 | 100 | 65 | 56.5 | 43 | 152 | 4-9×14 |
| MP-70R | 143 | 158 | 286 | 70 | 96 | 108 | 65 | 56.5 | 43 | 135 | 4-9×22 |
| MP-100R | 156 | 174 | 335 | 70 | 100 | 110 | 74 | 65.5 | 44 | 147 | 4-9×27 |
| MP-100R-5 | 156 | 174 | 335 | 70 | 100 | 110 | 74 | 65.5 | 44 | 147 | 4-9×27 |
| MP-120R | 140 | 210 | 369 | 98 | 128 | 110 | 95 | 80 | 51 | 120.5 | 4-Φ12 |
規格表：
|
型號 Model |
軟管接口式 Tube interface |
螺紋接口式Spiral interface R-M RX-M RZ-M |

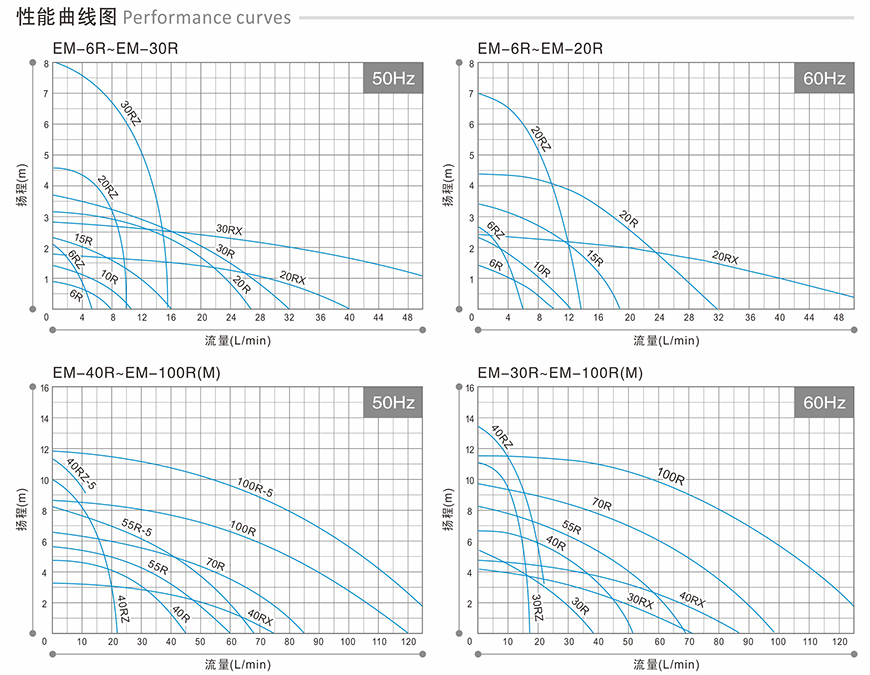

最大流量 Max.Capacity (L/min) 50Hz/60Hz |
最高揚程 Max.Head(m) 50Hz/60Hz |
比 重 Specific weight |
電 機 Motor |
重 量 Weight(kg) |
|||
|
入口 Inlet (mm) |
出口 Outlet (mm) |
入口/出口 Inlet/Outlet (Inch) (Inch) |
聯接節規格 (mm) |
輸出 50Hz/60Hz |
相 Phase |
|||||
| MP-6R | 14 | 14 | - | - | 8.0/9.0 | 1.0/1.4 | 1.2 | 6/6 | 1 | 0.9 |
| MP-6RZ | 14 | 14 | - | - | 5.5/6.0 | 2.1/2.7 | 1.1 | 1 | ||
| MP-10R | 14 | 14 | - | - | 11/12 | 1.5/2.1 | 1 | |||
| MP-15R | 16 | 16 | G 3/4 | 13 | 16/19 | 2.4/3.4 | 1.3 | 10/10 | 1 | 1.5 |
| MP-20R | 18 | 18 | G 3/4 | 16 | 27/32 | 3.1/4.3 | 1.1 | 20/20 | 1 | 1.9 |
| MP-20RX | 26 | 26 | G1 | 20 | 46/52 | 1.8/2.5 | 1.3 | 1 | ||
| MP-20RZ | 17.5 | 17 | G 3/4 | 13 | 10/11 | 4.6/6.9 | 1.1 | 1 | ||
| MP-30R | 20 | 20 | G 3/4 | 16 | 32/38 | 3.8/5.4 | 1.3 | 45/45 | 1 | 3.1 |
| MP-30RX | 26 | 26 | G1 | 20 | 62/72 | 2.9/4.1 | 1.1 | 1 | ||
| MP-30RZ | 17.5 | 17 | G 3/4 | 13 | 15/17 | 8.0/11 | 1.0 | 1 | ||
| MP-40R | 20 | 20 | G 3/4 | 16 | 45/52 | 4.6/6.5 | 1.1 | 65/65 | 1 | 3.8 |
| MP-40RX | 26 | 26 | G1 | 20 | 75/85 | 3.3/4.7 | 1 | |||
| MP-40RZ | 20 | 20 | G 3/4 | 16 | 22/22 | 10/13.5 | 1.0 | 1 | ||
| MP-40RZ-5 | 20 | 20 | G 3/4 | 16 | 11/- | 11.5/- | 65/- | 1 | ||
| MP-55R | 26 | 26 | G1 | 20 | 60/70 | 5.6/8.2 | 1.2 | 90/90 | 1or3 | 6.0 |
| MP-55R-5 | 70/- | 8.2/- | 90/- | 1or3 | ||||||
| MP-70R | 26 | 26 | G1 | 20 | 86/97 | 6.7/9.7 | 1.0 | 150/180 | 1or3 | 6.6 |
| MP-70RZ | 20 | 20 | G 3/4 | 16 | 40/43 | 14.3/20.3 | 180/216 | 1or3 | ||
| MP-100R | 26 | 26 | G1 | 20 | 120/135 | 8.6/11.9 | 1.2 | 260/265 | 1or3 | 8.1 |
| MP-100R-5 | 135/- | 11.7 | 1.1 | 260/- | 1or3 | |||||
| MP-120R | - | - | G 3/4 | 36 | 220/220 | 10.5/10.5 | 1.2 | 370/370 | 1or3 | 8.5 |
